SPECIMEN MOUNTING PRESS MANUFACTURER
Specimen mounting press is a metallographic specimen holding and thermal insulated. The mounting press would be like Bakelite material. In this machine operate 230V AC power. It takes less amount of current with high efficiency of the mounting done. The heater made upon for NiCr heat resistance wire has to reach good temperature and better life span of the machine. It’s controlled by hydraulic jack to lifting with a cylinder with piston arrangement. The quick return mechanism also included the specimen mounting press, and used for the digital timer to indicate perfect mould to bake the Bakelite powder. Specimen mounting press good appearance with powder coated on the surface, it prevents the rust, erosion environmental. This machine also is done by powder metallurgical research within the limit of the specification.

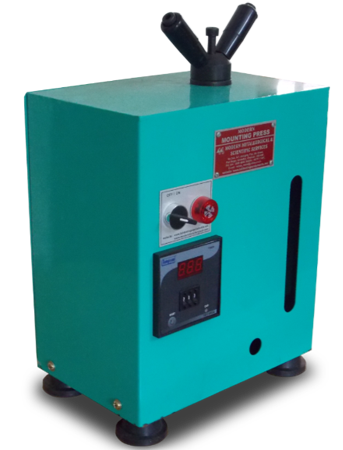

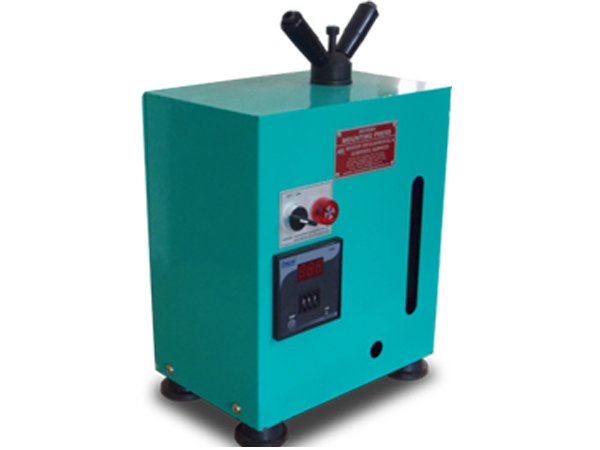

SPECIMEN MOUNTING PRESS
The machine is used for mounting of metal, and hard metallographic specimens, thermosetting plastic and Bakelite powder, also constructed and activated by hydraulic press . The press is provided with electric display, heater controlled and operates 220 volts A.C. Supply. The machine is used for mounting the metallographic specimens.
| DESCRIPTION | |
|---|---|
| Hydraulic Press Capacity | 2 Tons |
| Sample Size | 30mm |
| Timer Measurement | Electronic Display |
| Heating | Heater & Digital timer |
| Power Supply | 230V/60HZ, L + N + E |

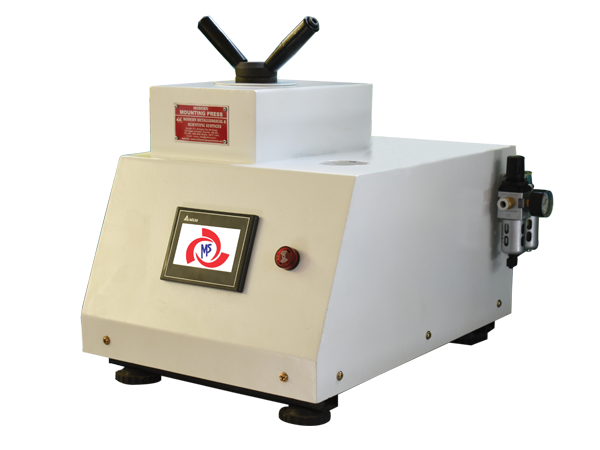

PNEUMATIC SPECIMEN MOUNTING PRESS- WATER COOLED PNEUMATIC PRESSURE SYSTEM
| Technical Specifications |
|---|
| With sample up down key operation for Pressure Application |
| Digital temperature control & indicator |
| Automated process control By Electronic time with auto charge from heating cycle to cooling cycle |
| 1500 W pre cast heater 1.25 “ mould Chamber |
| Fabricated and powder Coated Body |
| Provided with Sample Bakelite Powder. |

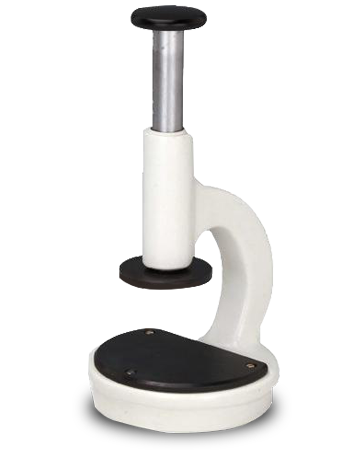

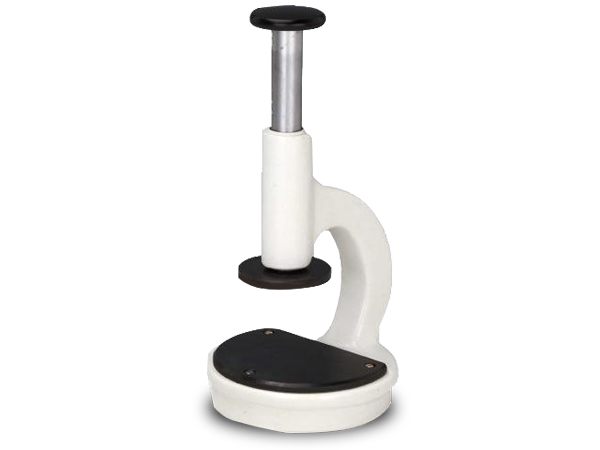

SPECIMEN LEVELLING PRESS
| Technical Specifications |
|---|
| For Levelling Metallographic Samples For use with upright met Microscope |
| Fine Machined & Electroplated Steel Moving shaft with Spring |
| Electroplated-paralell Steel Block for Levelling. |

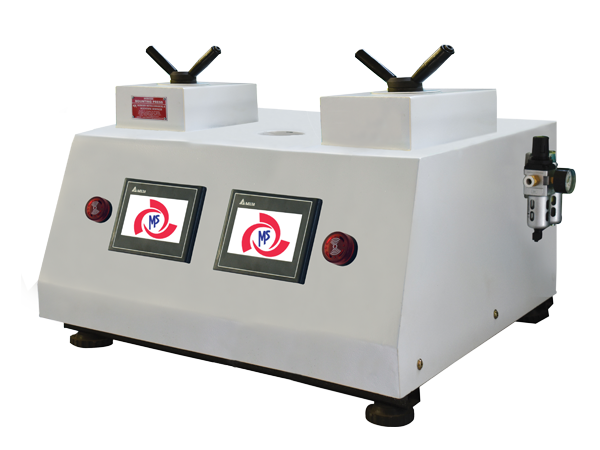

MODERN TWIN PNEUMATIC SPECIMEN MOUNTING PRESS
| Usages |
|---|
| Pneumatic Automatic System |
| The mounting press is equipped with a digital HMI temperature |
| Controller to establish real-time temperature meanwhile |
| A timer is equipped to realize the Automatic |
| Sample making while obviously increasing working efficiency |
| For each specimen-mounting 3-4 minutes |
| is enough and a mirror-like specimen can be acquired |
| High speed mould heater with built-in water cooling coils |
| Interchangeable mould |
| Suitable for high volume application, relieves operator fatigue |
| Technical Specifications |
| Corrosion Resistant Mild Steel Cabinet With Built in Twin Pneumatic Cylinder System |
| Pneumatic Operation System |
| Compressed air required 4 Bar Pressure |
| 1500 Watts Mould Heater |
| Quick ram return to speed up reloading |
| Dovetail slot for easy changeability of Mould assemblies |
| Display :User friendly advanced HMI LCD Touch Screen System |
| Digital temperature indicator and digital timer with LCD display |
| Setting Of Variable Cooling Time, Heating Time ,Mount Temperature, Ram Up and Down ,Cycle Start Can be Done and Controlled Through the Touch Screen Pad . |
| Mounting in Both Cylinder can be done in twin operation via LCD Touch Screen. |
| Automatic Water Cooling System |
| In this Machine -32 mm dia Mould . But we can use 40, 50mm also. |
| Quick heater for speedy operation |
| Pressure gauge, FRL |
| Timer and buzzer for After Cooling cycles |
