Belt Grinder MACHINE
BELT GRINDER MANUFACTURERS
Belt grinder is an abrasive machining process used on ferrous, non-ferrous and polymer material. Its typically used for industry and educational institute and researcher etc., The coated abrasive material on the belt surface, it’s processed on surface finish in order to material removal. The abrasive belt grinder machine drives with electrical motor, very powerful and reliable. This machine has powder coated with rust proof and damper Prof Machine. To change the Abrasive belt easy to wear belt. The perfect Alignment of the disc roller to enhance analyzed and optimized the samples. Belt grinder Manufacturers machine more compact and less space to install the machine.

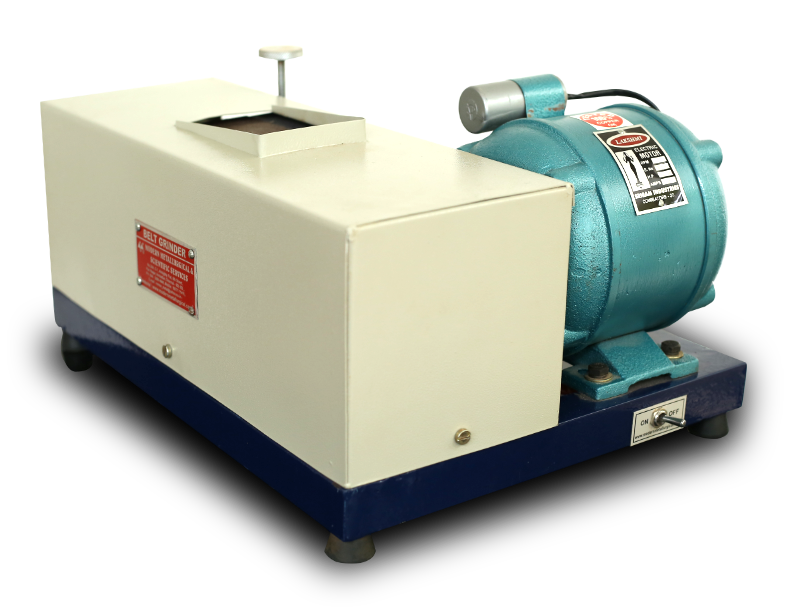

BELT GRINDER MACHINE (LIGHT DUTY)
| Technical Specifications |
|---|
| Sturdy Table Top Model for Pre-Grinding, of Metallurgical Specimen, |
| 1/4HP Single Phase Motor, 1440 RPM, |
| 100mm x 915mm Endless |
| Belt Constant Tension Spring Loaded mechanical system |
| Aluminium Idler Pulley Mechanism |
| Simplified Belt release mechanism Easy removable Dust cover system |
| Emery Cloth Belt for Dry Polishing |
| Belt Size 100x915mm endless Grit 60,80 |
| Machine Size: 500 X 350 X 250mm |
| Machine Size : 500 X370 X260mm |
| Power supply : 230V 60HZ, L + N + E |

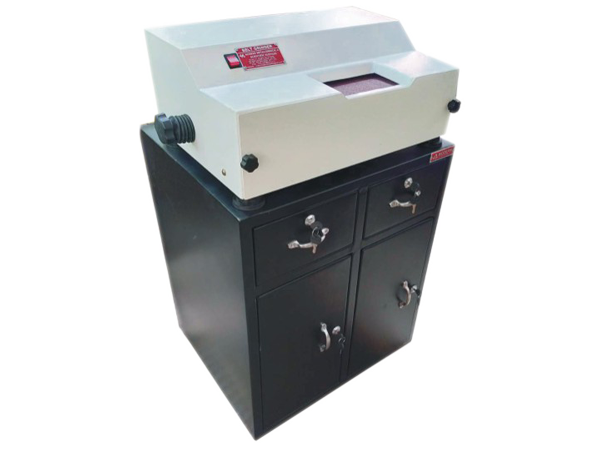

BELT GRINDER MACHINE (MEDIUM DUTY)
| Technical Specifications |
|---|
| Sturdy Table Top Model for Pre-Grinding, of Metallurgical Specimen, |
| 0.5 HP Single Phase Motor, 1440 RPM |
| 100mm x 915mm Endless |
| Belt Constant Tension Spring Loaded mechanical system |
| Aluminium Idler Pulley Mechanism |
| Simplified Belt release mechanism Easy removable Dust cover system |
| Emery Cloth Belt for Dry Polishing |
| Belt Size 100x915mm endless Grit 60,80 |
| Machine Size:570 X 520 X 250mm |
| Table size: 580X530X710mm |
| Power supply : 230V 60HZ, L + N + E |
| Machine Size : 610 X 540X 310 mm |

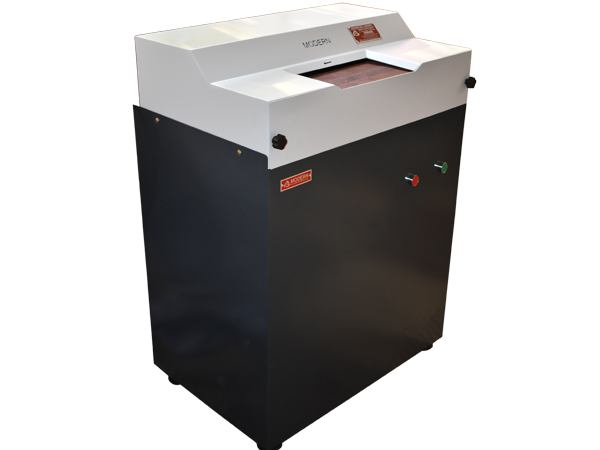

BELT GRINDER MACHINE (HEAVY DUTY)
| Technical Specifications |
|---|
| Multi Purpose Belt Grinding Machine Floor Model for Pre-Grinding of Metallurgical Specimen |
| Motor Speed 1 HP 3 Phase Motor 1440 RPM |
| Aluminum Pulley & Simplified Belt release Mechanism |
| Double speed Mechanism |
| Belt Size 150 mm x 1220 mm Endless Grit 120 , 80, 60 |
| Less Vibration Design |
| Constant tension Spring Loaded mechanical system, |
| Easy Removable Dust Cover with Tray |
| Power Supply : 415V 50Hz, ( R + Y+ B+N+ E ) |
| Size : 760 X 480 X 1020 mm |
| Emery Cloth belt for Grinding |
