INTRODUCTION
Our range of digital microscopes are economic, reliable and long lasting. The range we offer is a breakthrough precision measuring and gauging equipment in the global digital microscope market.

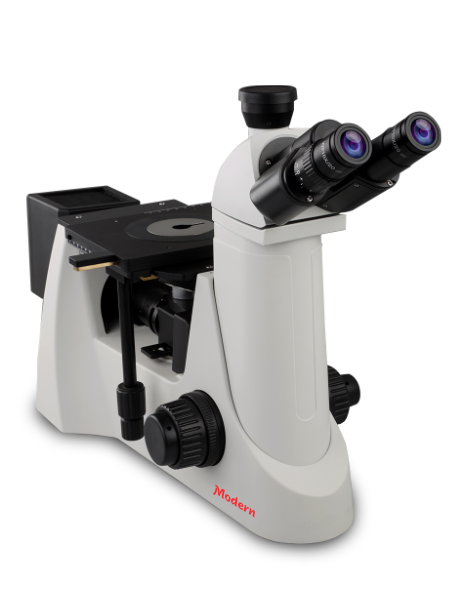

DMI Classic
| Trinocular Observation Head |
|---|
| Siedentopf observation head inclined at 30° rotatable at 360°. |
| Vertical phototube for micro photography. |
| Diopter adjustment ring on ocular tube (±5). |
| Inter-pupillary distance from 52mm to 75mm. |
| Eyepiece (Anti fungus) |
|---|
| Wide field 10X (paired) F.O.V. 20mm. |
| Objectives (Infinity corrected) |
|---|
| M Long working distance plan 5X |
| M Long working distance plan 10X |
| M Long working distance plan 20X |
| M Long working distance plan 50X |
| Mechanical Body |
|---|
| Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING. |
| Quadruple nosepiece on ball bearing. |
| Mechanical stage is 180mm X 155mm. Moving range 80mm X 50mm. |
| Mechanical stage has low positioned co-axial controls on ball bearing guide ways. |
| Illuminator |
|---|
| Epi-Koehler’s illumination. Aperture iris diaphragm 5W LED lamp AC 85-230V. |
| Adjustable brightness. Filter wheel fixed in light path with blue, green & yellow filters. |
| Standard Accessories |
|---|
| Blue, green & yellow filters, operating manual, dust cover, styrofoam molded pack. |
| Optional Accessories |
|---|
| M Long working distance plan 100x objective (dry) |
| Polarizer/Analyser Attachment. |

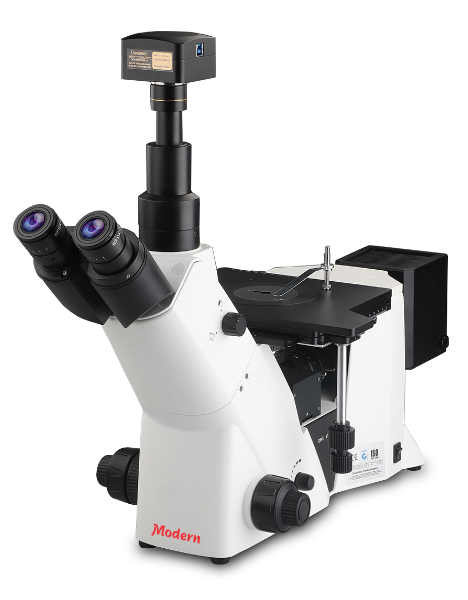

DMI Victory
| Trinocular Observation Head |
|---|
| Siedentopf observation head inclined at 45°. |
| Diopter adjustment ring on ocular tube (±5). |
| Inter-pupillary distance from 53mm to 75mm |
| Focusable vertical tube for Digital Microphotography. |
| Eyepiece (Anti fungus) |
|---|
| Wide field10X (paired) F.O.V. 22mm. |
| Objectives (Infinity corrected) |
|---|
| M Long working distance plan 5X |
| M Long working distance plan 10X |
| M Long working distance plan 20X |
| M Long working distance plan 50X |
| M Long working distance plan 100X (S.L.) Dry |
| Mechanical Body |
|---|
| Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING. |
| Quintuple nosepiece on ball bearing. |
| Mechanical stage is 210mm X 180mm and moving range 50mmX50mm |
| Mechanical stage has low positioned co-axial controls on ball bearing guide ways. |
| Upper port with phototube for micro photography. |
| Standard Accessories |
|---|
| 12V/50W halogen tungsten bulb, operating manual, dust cover, guarantee card and Styrofoam molded pack. |
| Optional Accessories |
|---|
| Polarizing/Analyzer rotatable at 360°. Polarizer & Analyzer can be slide in/out of the optical path. |

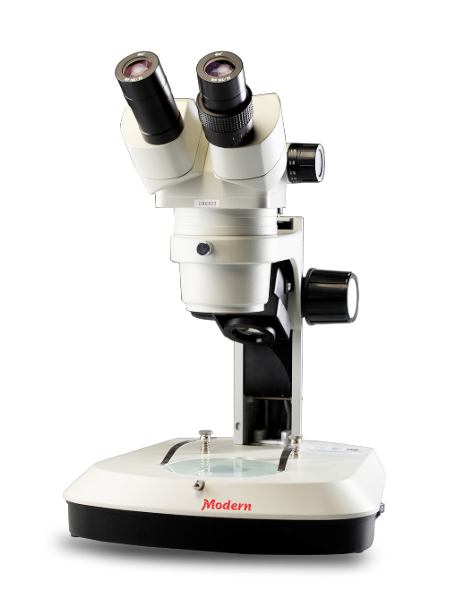

Zoomstar II
| Trinocular Observation Head |
|---|
| Observation head inclined at 45° rotatable at 360°. |
| Vertical phototube for micro photography. |
| Diopter adjustment ring on ocular tube (±5). |
| Inter-pupillary distance from 54mm to 76mm. |
| Eyepiece |
|---|
| Wide field 10X (paired) F.O.V. 20mm. |
| Zooming Range & Ratio |
|---|
| Zoom 0.7X to 4.5X with magnification ratio of 1:6.4 |
| Magnification Range |
|---|
| 7X-45X |
| Working Distance |
|---|
| 100 mm |
| Mechanical Body |
|---|
| Track stand with fan type base. |
| Lateral zoom control movement. |
| Clip for holding specimen. |
| Base size is 285mm X 238mm. |
| Illumination System |
|---|
| Incident and transmitted light systems with LED lamps. |
| Both lights are regulated with power supply and has separate brightness controls. |
| Standard Accessories |
|---|
| Operating manual, dust cover, guarantee card and styrofoam molded pack. |

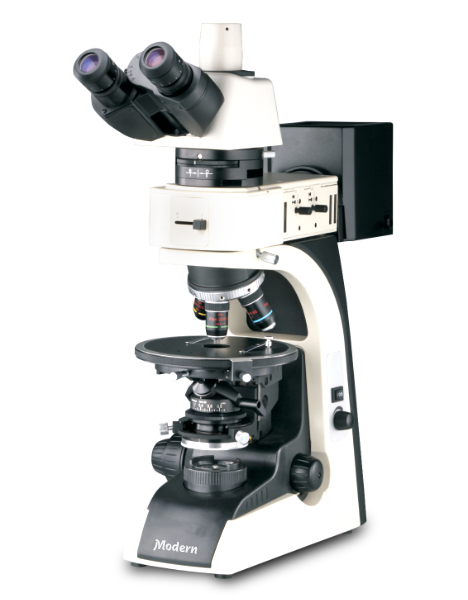

Polarizing Microscope
| Optional At Extra Cost |
|---|
| Digital Micrometers with LC 0.001mm |
| Digital Read Out System (DRO) with accuracy of 0.005mm OR 0.001mm |
| Technical Specifications | |
|---|---|
| Optical System | Infinite optical System |
| Trinocular Viewing Head | Seidentopf trinocualr head inclined at 30°, interpupillary Bertrand lens position adjustable Reflected illuminator 12V/ 50W Halogen lamp, Transmitted 48-75mm |
| Eyepiece | Plan eyepiece 10X/20mm. |
| Objectives |
Stain free Plan Achromatic 10x Stain free Plan Achromatic 20x Stain free Plan Achromatic 40x Stain free Plan Achromatic 60x |
| Nosepiece | Backward Quadruple nosepiece, center adjustable |
| Analyzer | 360° dial rotation Minimum scale reading :0.1°(Vemier scale) |
| Conoscopic observation attachment | Switch between orthoscopic and conoscopic observation, Bertrand lens position adjustable |
| Optical Compensator | First-order red plate, guarter-wave plate, Quartz wedge |
| Polorizing Rotatable stage | Diameter ö170mm, center adjustable, 360? scale, Minimum division 1?, Minimum reading 6? by means of vemier scale , 45? click stop knob |
| Condenser | Stain free Plan Achromatic 60x Strain free swing condenser NA0.9/0.25 |
| Focusing | Coaxial coarse & fine adjustment , Range 32mm, Fine division 0.001mm, coarse stroke 37.7 mm per rotation , fine stroke 0.1mm per rotation |
| Polorizer | 360° rotatable 0° position adjustable |
| Illumination | Reflected illuminator 12V/ 50W Halogen lamp, Transmitted 12V/20W Halogen lamp,Brightness adjustable |
| Filter | blue filter ö 45mm |
| Optional Filter | ND6 Neutral density filter ö 45mm ND25 Neutral density filter ö 45mm |
| Attachment | Attachment Stain free Plan Achromatic 60x Strain free swing condenser NA0.9/0.25 Video attachment 0.01 mm micrometer. |

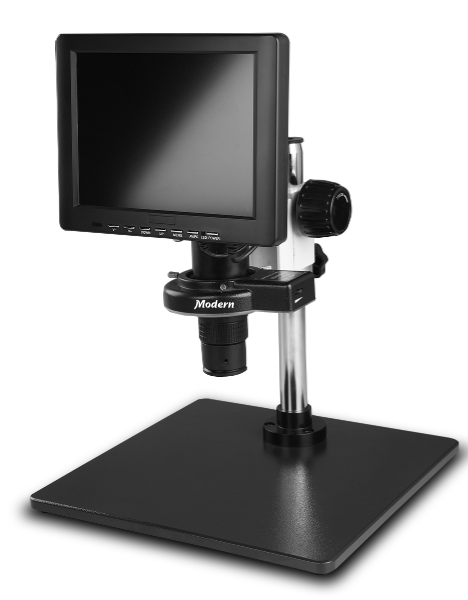

Digi Monozoom
| Technical Specifications | |
|---|---|
| LCD Observation Head | 10” HD camera and monitor combination. 1280X800 resolution @ 60 fps (24bit). 5.0 mp cmos camera, capture without a PC. HDMI output, multiple cross hairs for quick observation. Super easy auto white balance for color accuracy. Memory Slot SD ( upto 32 GB). 2 GB card included. USB 2.0 output. |
| Zooming Range & Ratio | Zoom 0.7X to 4.5X with magnification ratio of 1:6.4 |
| Magnification Range | 7x - 45X |
| Working Distance | 100 mm |
| Mechanical Body | Pole stand with base. Lateral zoom control movement. Clip for holding specimen. Base size is 285mm X 238mm. |
| Epi - Illumination System | Transmitted led ring light systems. Regulated with power supply and has separate brightness controls. |

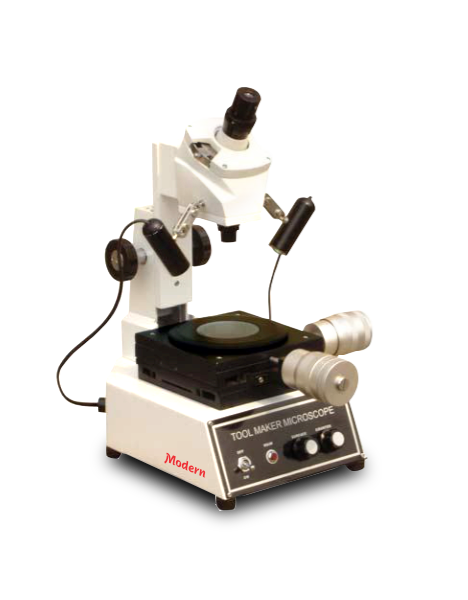

Tool Maker Microscope
| Optional At Extra Cost | |
|---|---|
| Digital Micrometers with LC 0.001mm | |
| Digital Read Out System (DRO) with accuracy of 0.005mm OR 0.001mm | |
| Technical Specifications | |
|---|---|
| Focusing Mechanism | 1By Rack & Pinion |
| Magnification | 30X |
| Objective | 2X |
| Eyepiece | WF15X (Cross) |
| Work Stage | 150mm X 150mm, Graduated 360 degrees rotatable |
| Travel X & Y | 25 X 25mm |
| Micrometer | 0 to 25 mm, 50 mm Dia, least count 0.01mm |
| Table Glass | Dia 90mm approx |
| Goniometer | 360 degree with venires |
| Working Distance | 100mm approx. |
| Illumination | Bottom 6V/20W halogen & Surface 220V Fluorescent Twin lamps |
| Power Required | 220-230V AC, 50Hz |

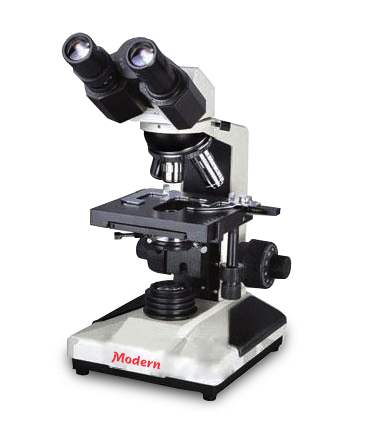

Binocular Microscope
| Technical Specifications | |
|---|---|
| Model | Binocular Metallurgical Microscope |
| Optical system | Semi Plan Achromatic Optical system |
| Viewing Head | Trinocular 45˚ Inclined having 55 - 75 mm interpupillary adjustment, With Separate port for Camera |
| Eyepiece | Wide field WF10X/(18mm) & H 15X |
| Objective | Strain-free Semi plan achromatic M4X Strain-free Semi plan achromatic M10X Strain-free Semi plan achromatic M40X |
| Magnification | 40x to 600x |
| Focus system | Uni-axial separate Coarse & Fine focusing knobs travel on rack and pinion motion |
| Nosepiece | Quadruple ball bearing with positive click stops |
| Stage | Co-axial stage integrated with low position mechanical control knobs |
| Condenser | Abbey’s 1.25 NA with iris diaphragm & Swing out filter holder |
| Filter | Day Light Blue and Green (2nos) Built in base 6V/20W halogen lamp with variable light intensity control system. |
| Power Supply | 240V AC 50/60Hz |
| Standard Accessories | Instruction Manual, Dust Cover, filters, electric cord and fuse. |
| Optional Accessories at extra cost | Objective 100x, Digital LCD Screen , Eyepiece H5x and WF 20x , Ocular Micrometer Eyepiece WF10X, Grain Size Eyepiece, Digital camera/USB camera, Image Analysis software |

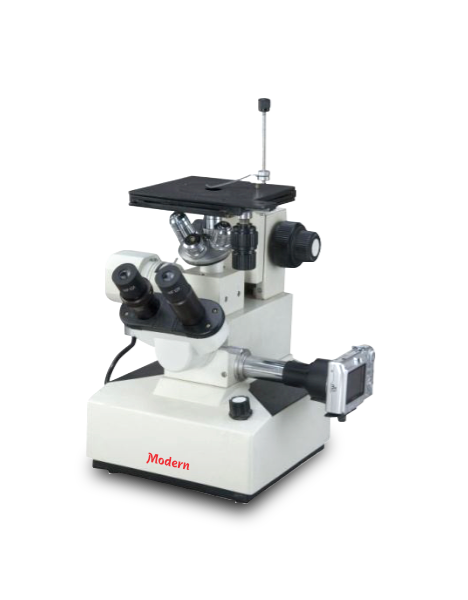

Inverted Trinocular Microscope
| Technical Specifications | ||
|---|---|---|
| Model | Trinocular Inverted Metallurgical Microscope | |
| Optical system | Semi Plan Achromatic Optical system | |
| Viewing Head | Binocular 45 ̊ Inclined having 55 - 75 mm interpupillary adjustment, Separate Trinocular port for Camera | |
| Eyepiece | Wide field WF10X/(18mm) | |
| Standard Objectives | Standard Magnifications | |
| Strain-free Semi plan achromatic M 10X | ||
| Strain-free Semi plan achromatic M 20X | ||
| Strain-free Semi plan achromatic M 40X | ||
| Strain-free Semi plan achromatic M 80X | ||
| Magnification | 100x to 800x | |
| Focus system | Coaxial coarse/fine focus system, with tension adjustable, travel on ball guides | |
| Nosepiece | Quadruple ball bearing with positive click stops | |
| Stage | Low drive Co-axial stage of size 150 x150mm with integrated, low position mechanical control knobs with smooth travel on ball guides | |
| Condenser | Abbey’s 1.25 NA with iris diaphragm & Swing out filter holder | |
| Filter | Green Polished Day Light Blue Polished |
|
| Illumination unit | Horizontal 12V/50W halogen lamp with variable light intensity control system & slots for dropping filters with aperture diaphragm | |
| Power Supply | 240V AC 50/60Hz | |
| Standard Accessories | Instruction Manual, Dust Cover, two color filters, electric cord and fuse. | |
| Optional Accessories at extra cost | Objectives : M 5x , M20x & M50x Eyepiece : H5x & WF 20x , Micrometer Scale Eyepiece, Grain Size Eyepiece, Stage Micrometer slide 0.01mm, Digital Camera/USB camera, Image Analysis software (For Metallurgy) | |
