Modern Table Top – 2
MODERN TABLE TOP – 2 is a compact metallographic sample preparation machine designed for precise grinding and polishing. It delivers smooth, consistent surface finishes with stable operation, durable construction, and reliable performance for laboratory material analysis.
Note : Also Available In A Compact Table-Top Model With The Same Technical Specifications
- Compact tabletop design for space-saving laboratory use
- Variable speed control for precise grinding and polishing
- Heavy-duty motor for smooth, continuous operation
- Corrosion-resistant stainless steel working surface
- Dual-disc system for efficient sample preparation
- Low vibration and low noise for stable performance
| Specification | Details |
|---|---|
| Machine Construction | Heavy-duty, rust-proof construction with corrosion-resistant FRP body. |
| Cutting Capacity | Up to Ø60 mm for standard steels (varies depending on material). |
| Spindle Speed | 2880 RPM. |
| Cut-Off Wheel Size | 300 mm (12″) Abrasive Cut-Off Wheel. |

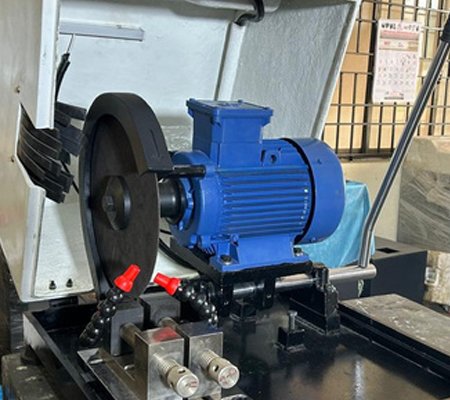

| Motor | 3 HP, 3-Phase ISI Mark Motor (Bharat Bijlee Brand). |

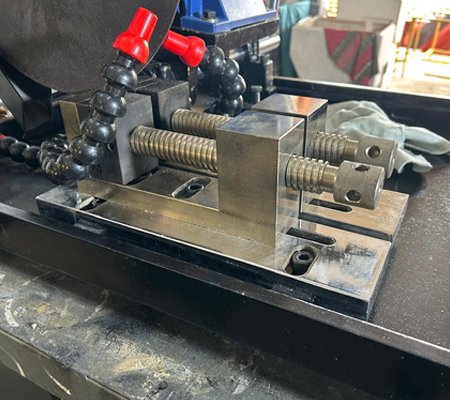

| Bed Type | T-Slot Bed – 250 × 70 mm with 10 mm slot and twin-thread vice. |
| Cooling System | Dual water-jet cooling for optimum cutting performance. |
| Coolant Pump | 1/10 HP Coolant Motor. |
| Coolant Tank | Built-in 65 Litre recirculation coolant tank. |

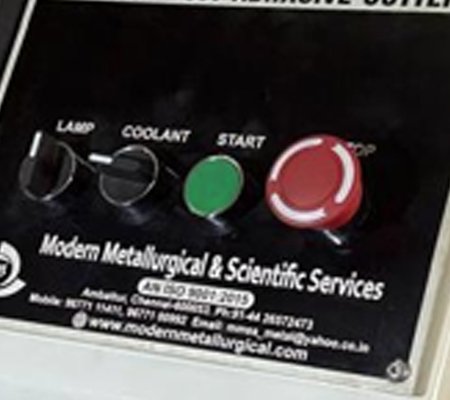

| Safety Features | Emergency Stop, Safety Limit Switch, Contactor with Overload Protection (OLR), and fully enclosed FRP body for maximum operator safety. |
| Viewing Hood | Splash-proof, corrosion-resistant transparent viewing hood. |
| Work Area Lighting | Integrated fluorescent work light. |
| Long Workpiece Support | Side opening for convenient cutting of long workpieces. |
| Maintenance | Full FRP cover provides corrosion resistance and easy maintenance. |
| Machine Dimensions | 770 × 600 × 630 mm. |
Standard Accessories
- Cut Of Wheel : 300X 1.5 X 31.75mm 12″ inches (Low Hardness)
- Cut Of Wheel : 300X 1.5 X 31.75mm 12″ inches (High Hardness)
- Cutting Machine Table (Vibration observation table)
Optional Accessories
Door Interlock
It is utilized in order to assist in staving off machine that cause harm to the machine itself or to the operators
Frequently Asked Questions

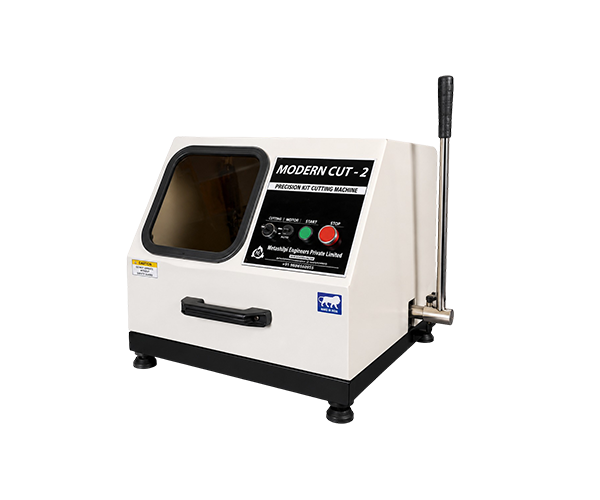

What is the maximum cutting capacity of the Modern Cut-2?
Cuts standard steel specimens up to Ø60 mm with precise and reliable cutting performance.
What safety features are included?
Includes FRP safety enclosure, emergency stop, overload protection, and safety limit switch.
Does the machine have a cooling system?
Yes, it features dual water-jet cooling with a 65-litre recirculating coolant tank.
Which accessories are supplied?
Supplied with cut-off wheels, vibration observation table, and optional door interlock system.
Where can this machine be used?
Suitable for metallurgical laboratories, research institutes, quality control, and industrial manufacturing facilities.
