MS – VICTORY
Technical Specification
Trinocular Observation Head
- Siedentopf observation head inclined at 45°.
- Diopter adjustment ring on ocular tube. (±5).
- Interpupillary distance from 53mm to 75mm.
Eyepiece (Anti Fungus)
- Wide eld eyepiece 10X (paired) F.O.V. 22mm
Objectives (Infinity Corrected)
- M Long working distance plan 10X (WD 20.2mm)
- M Long working distance plan 20X (WD 8.80mm)
- M Long working distance plan 50X (WD 3.68mm)
- M Long working distance plan 100X (S.L.) Dry
(WD 0.40mm)
Illumination
Epi-Koehler’s illumination. Aperture iris diaphragm and field iris diaphragm 12V/50W halogen lamp. Adjustable brightness. Filter wheel fixed in light path with blue, green & yellow filters.
Polarizing Outfit
Analyzer rotatable at 360 . Polarizer & Analyzer can be slide in/out of the optical path.
Mechanical Body
- Co-axial focusing system with large knobs, PRE FOCUSING
LEVER & TENSION ADJUSTMENT RING. - Quadruple nosepiece on ball bearing.
- Mechanical stage is 242mm X 200mm and moving range
30mmX30mm - Mechanical stage has low positioned co-axial controls on
ball bearing guide ways.
Standard Accessories
12V/50W halogen tungsten bulb, operating manual, dust cover, guarantee card and styrofoam molded pack.

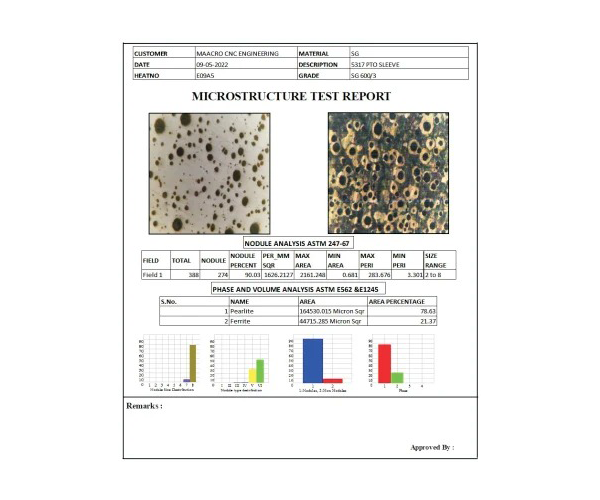

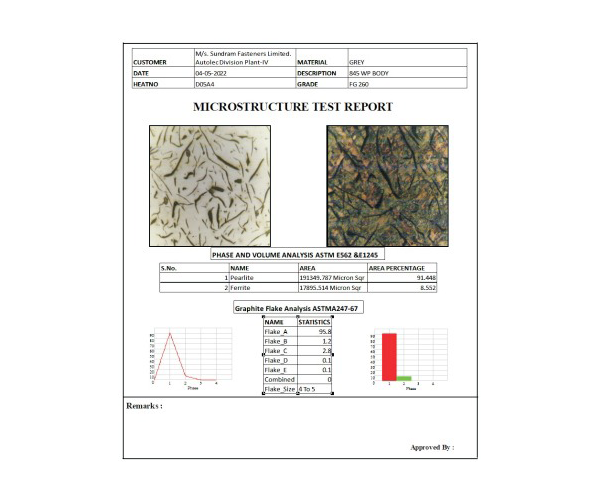

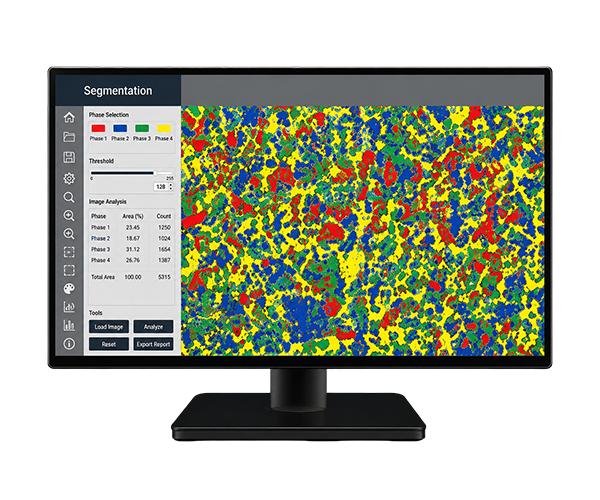

Metallurgical Software
