Enhanced Polishing Precision Control
Modern Single Disc Variable Speed Grinder/Polisher Model : Modern – 5
- 12″ single disc polisher
- Variable speed from 100-900 RPM
- DC Drive width LED Display
- 0.25HP High torque DC Motor
- Power Supply 230/50Hz, L+N+E
- Machine Size : 500 X730X450 mm
Accessories
- Polishing machine Table ( Fully covered Compact Model )
- Air Drier
- Additional Aluminium Disc Set (Cloth & Clamping Spring)

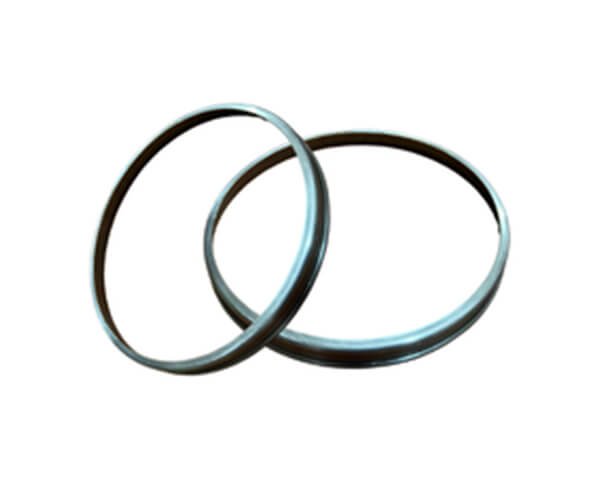

- Paper clamping ring for ( Stainless Steel )
- Belt
Frequently Asked Questions
What is the Modern-5 Single Disc Variable Speed Grinder/Polisher used for?
The Modern-5 is designed for grinding and polishing metallographic specimens to produce smooth, defect-free surfaces for microscopic examination and material analysis.
What is the speed range of the Modern-5?
The machine offers variable speed control from 100 to 900 RPM, allowing precise adjustment for different grinding and polishing applications.
What is the size of the polishing disc?
The Modern-5 is equipped with a 12-inch (300 mm) aluminum polishing disc for efficient specimen preparation.
What type of motor and drive system does the machine use?
It features a 0.25 HP high-torque DC motor with a DC drive, LED speed display, and a durable V-belt transmission for smooth and reliable operation.
Which industries and laboratories use this machine?
The Modern-5 is widely used in metallurgical laboratories, quality control departments, research institutes, engineering colleges, foundries, automotive industries, and material testing laboratories.
