Dual Disc Grinding Precision
Modern Double Disc Spectro Grinding Machine Model : Floor – Fixed Speed Individual Operation
- The body is fabricated from heavy-duty Sheet metal
- Air Section for Vacuum Blower
- DISC DIA 350mm (Dynamically Balanced)
- Power Supply 3Phase MOTOR 2HP 415 volts Ac 50Hz with ISI mark
- Machine Size : 800 X 580 X 880 mm
Accessories

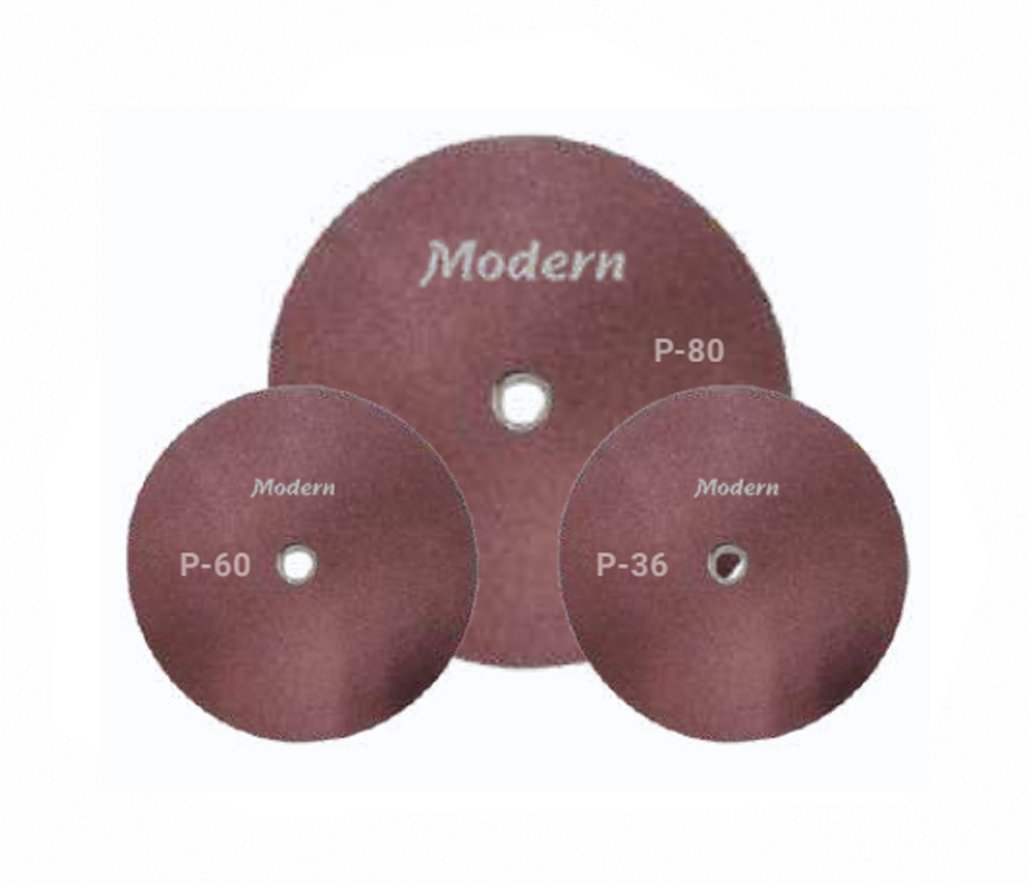

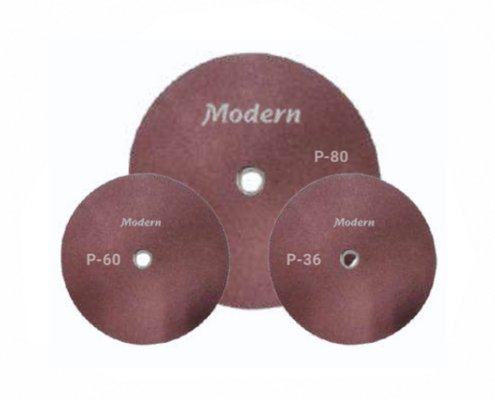

- 350 mm Dia 40 mm ID Grit 60 Spectra Emery Paper
- 350 mm Dia 40 Mm ID Grit 36 Spectra Emery paper
- 350 mm Dia 40 Mm ID Grit 80 Spectra Emery paper
- Dust Filter Bag

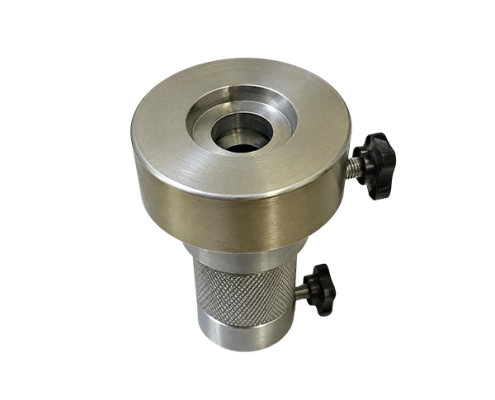

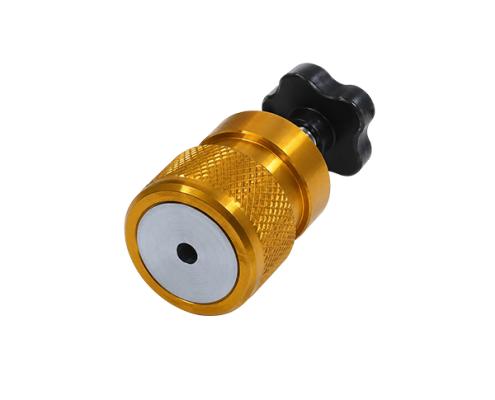

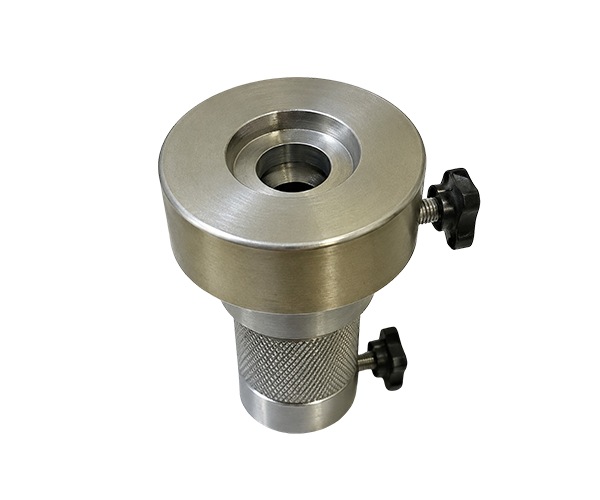

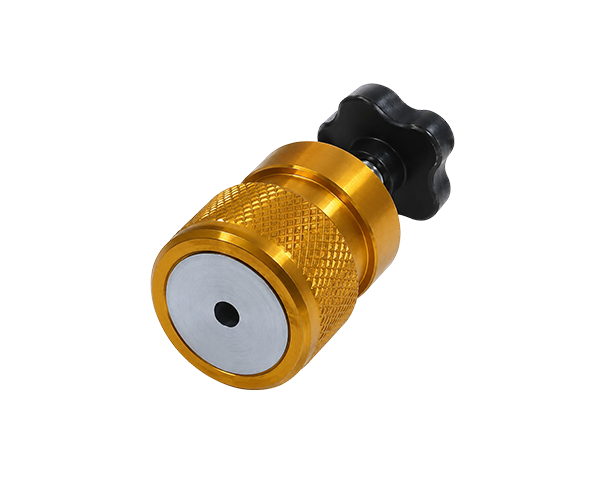

- Magnetic Holder – Aluminum Body (High Power)
- Non-Ferrous Material
Frequently Asked Questions
What is the Modern Double Disc Spectro Grinding Machine used for?
It prepares metal specimens with smooth surfaces for accurate spectrographic and metallurgical analysis.
What are the grinding disc specifications?
The machine features two 350 mm dynamically balanced grinding discs operating at a fixed speed of 2880 RPM.
What safety features are included?
It includes a protective safety guard, overload protection, and a reinforced circular enclosure for safe operation.
What motor and power supply does the machine require?
The machine uses a 2 HP Bharat Bijlee / ISI motor with a 415V, 3-phase, 50 Hz power supply.
Which accessories are supplied with the machine?
It includes Spectra Emery Papers (36, 60, 80 grit), a magnetic holder, and a dust filter bag.
